Surron Foot Brake Assembly

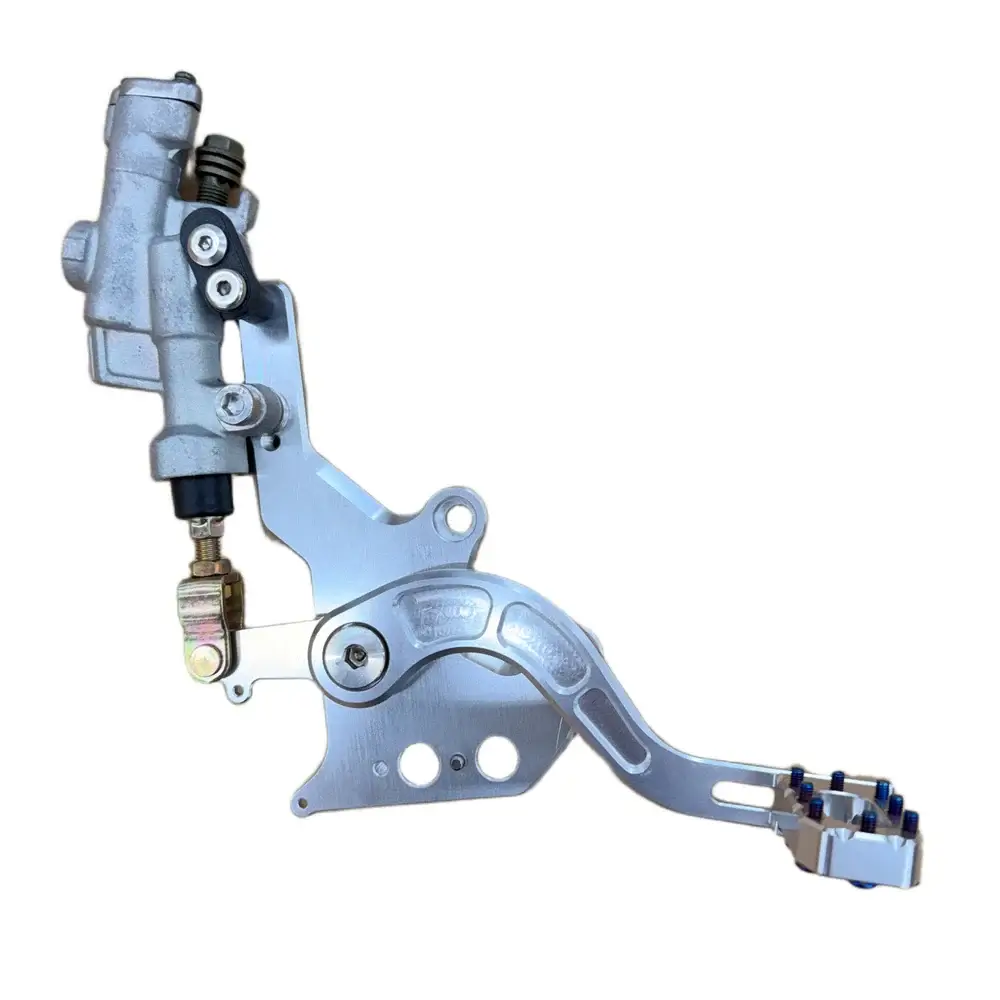

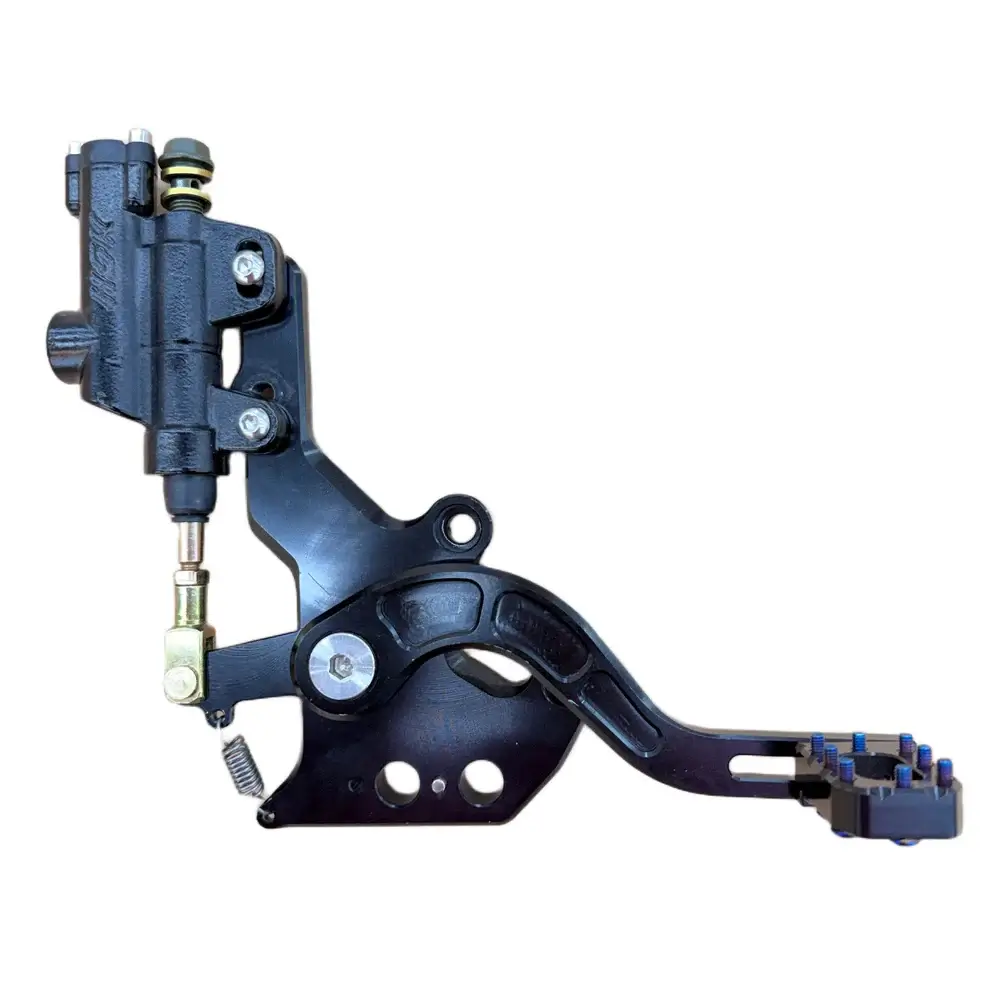

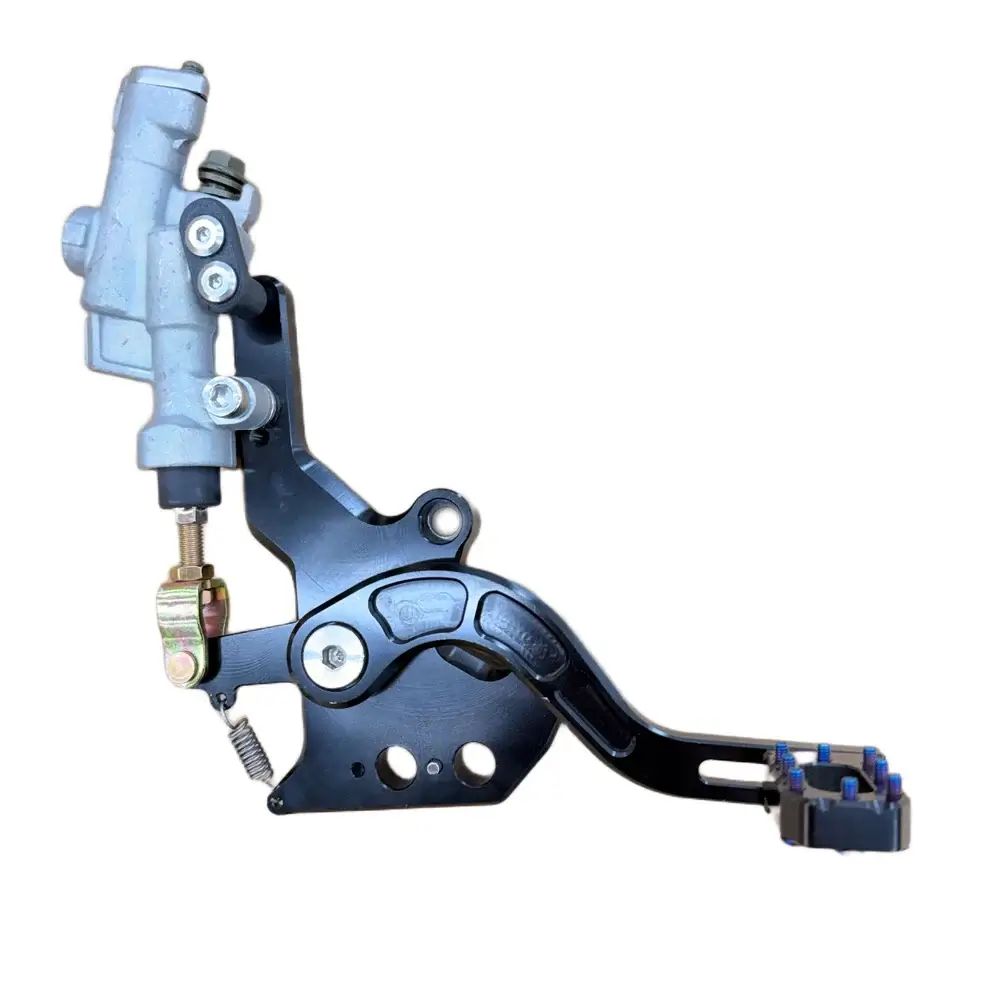

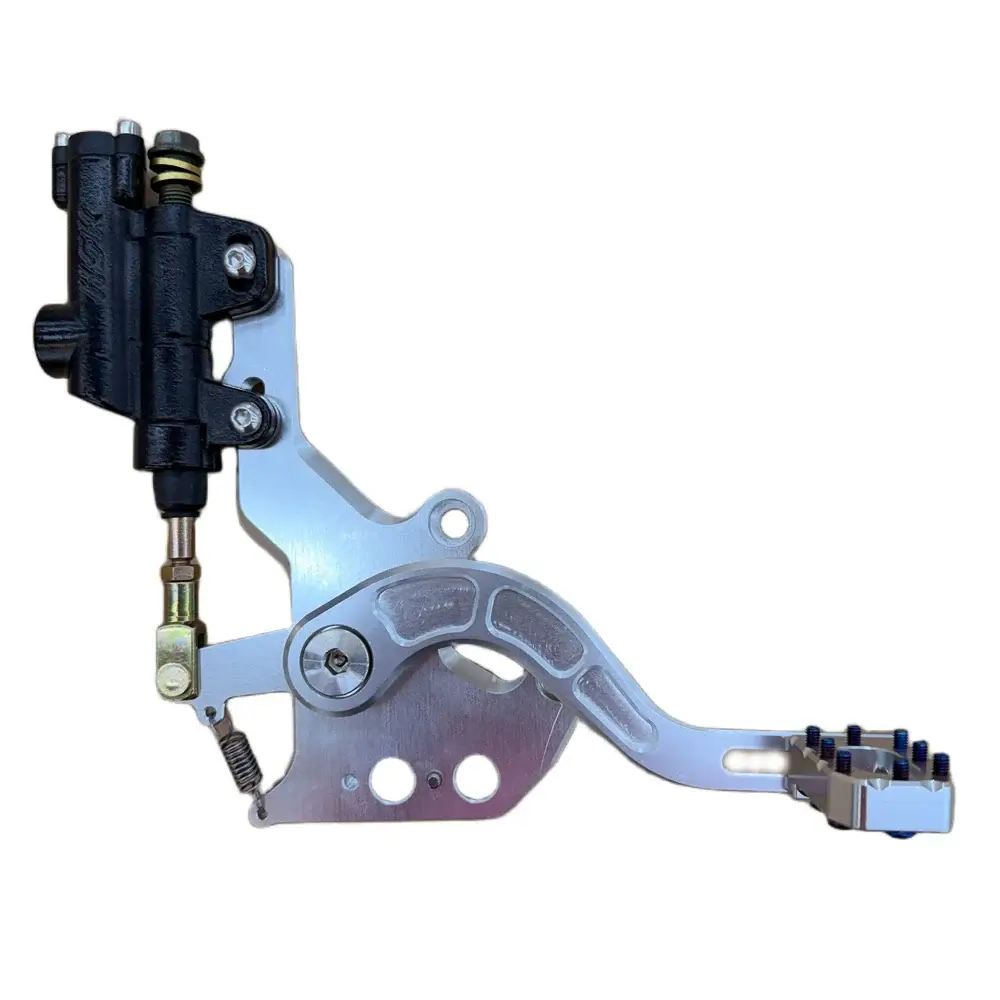

FactoryZ Foot-Brake for the Sur-Ron Light Bee

Give your Light Bee the moto feel it deserves. Our billet 6061-T6 aluminum foot-brake assembly moves rear-brake control back to your right boot, freeing your hands for cleaner wheelies, scrambles, and technical climbs.

Kit contents:

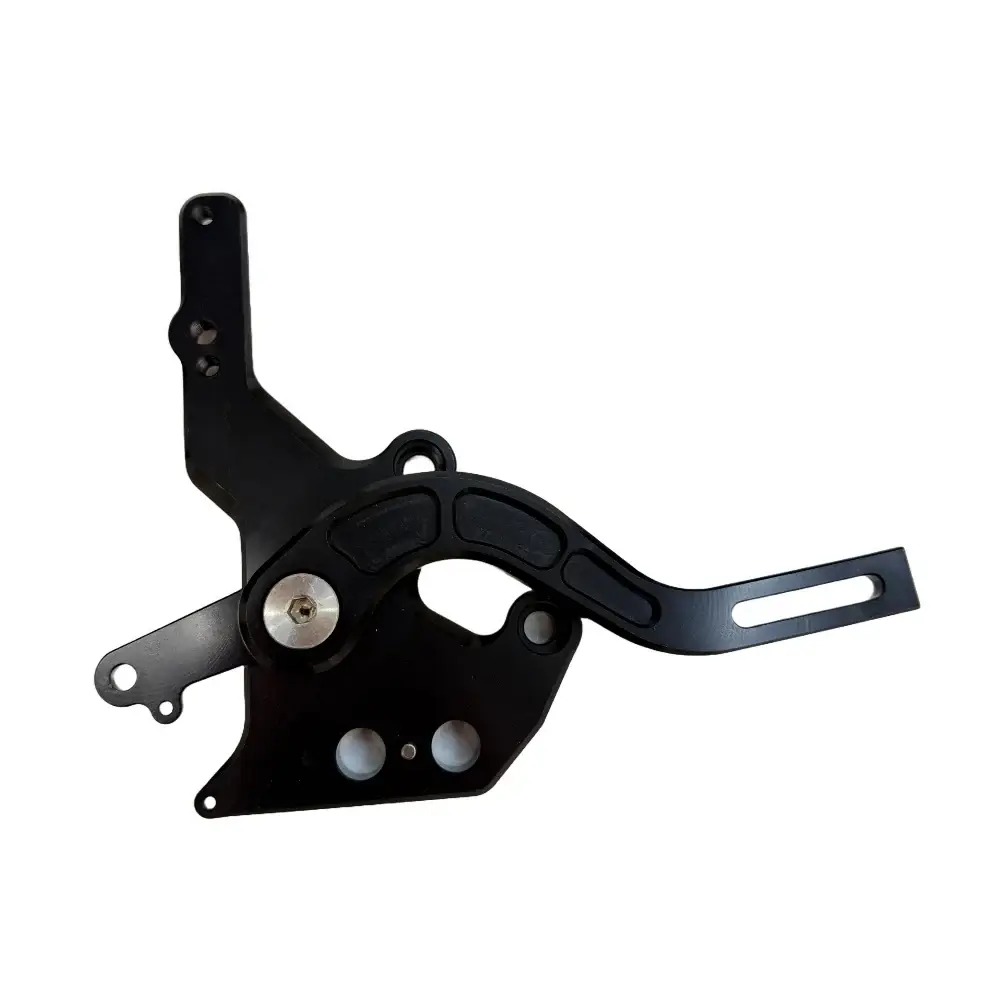

• Foot-brake bracket and lever assembly (CNC 6061-T6)

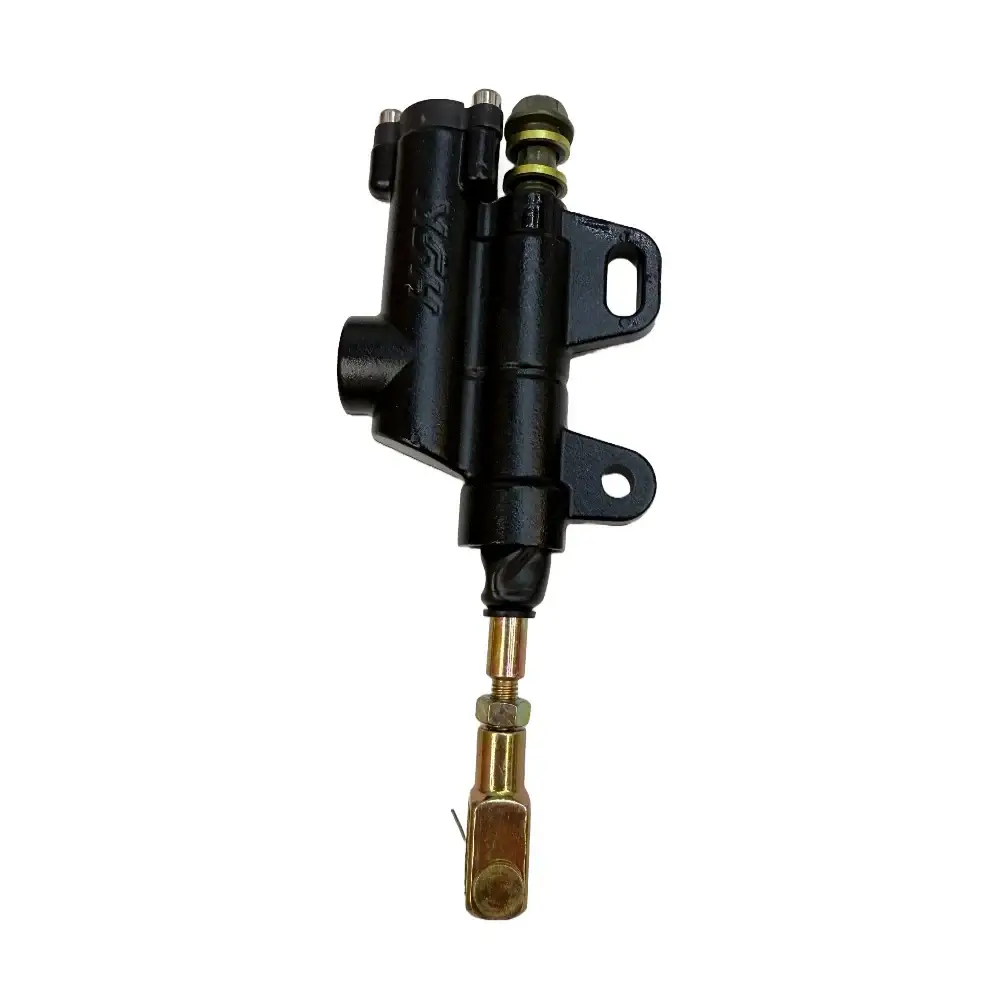

• Hydraulic master cylinder with integrated reservoir ( USES DOT 4 )
• Mounting bolts, return spring, clevis pin

Fluid & installation notes

• Use DOT 4 brake fluid only. Mineral oil will swell the seals and void the warranty.

• Torque the pedal pivot bolt to 10 Nm and bleed the line just like a standard hydraulic disk brake.

• Average install time is 20 minutes with basic hand tools.

Why riders upgrade

• True dirt-bike control – modulate rear traction with your foot instead of your fingers.

• Stronger, stiffer pedal platform – CNC-machined from aerospace-grade 6061-T6, ready for hard landings.

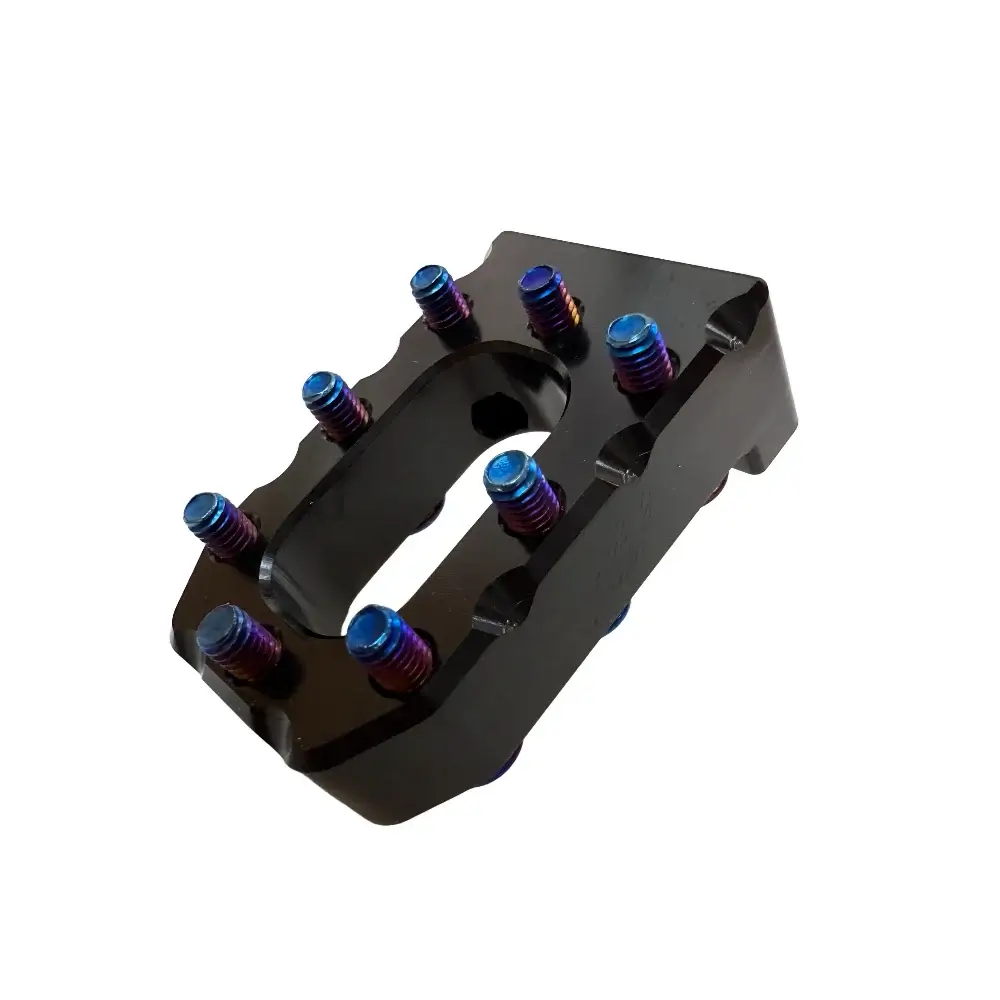

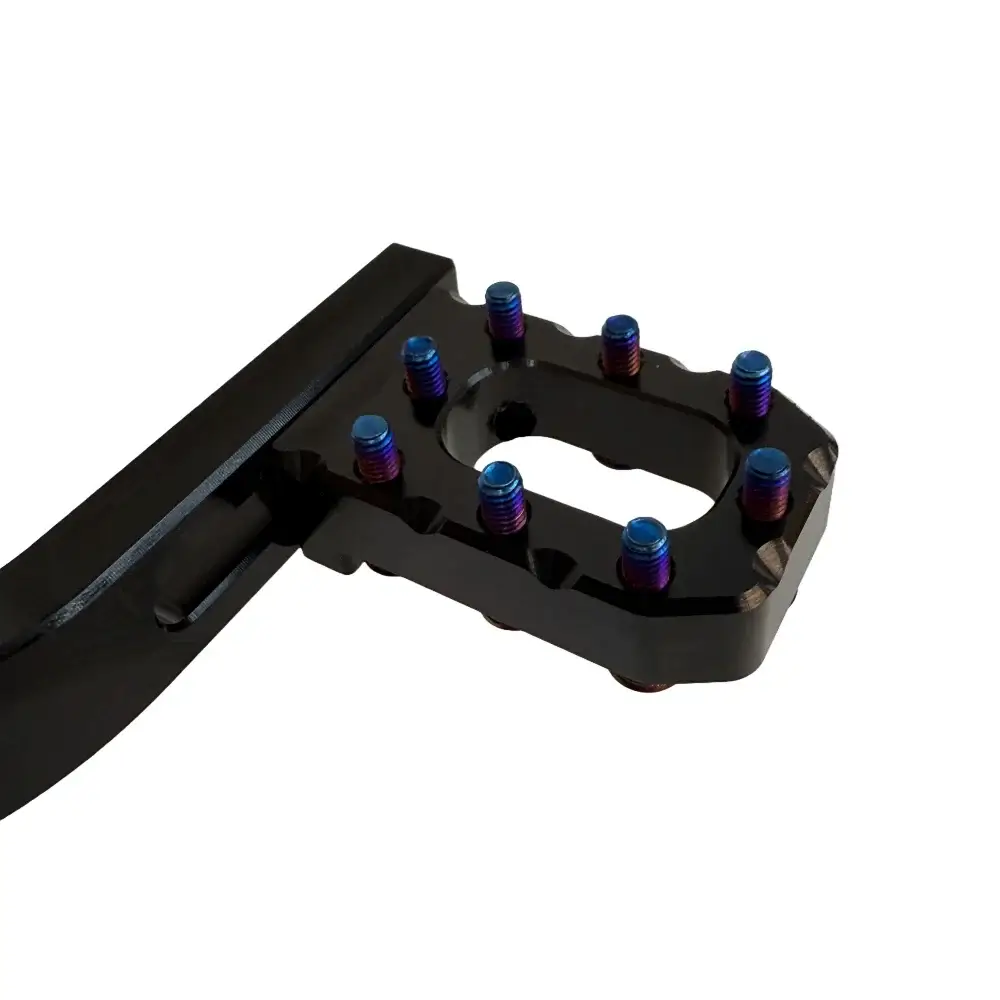

• Race-built ergonomics – adjustable toe peg lets you set the perfect bite point with MX boots or sneakers.
